Product Details
Place of Origin: China
Brand Name: Hua wei
Certification: CE
Model Number: S5735 L24T4X A1
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: $1800/piece
Delivery Time: 1-3 working day
Payment Terms: T/T
|
Part Number:
|
S5735 L24T4X A1
|
Brief Description:
|
Managed Switch
|
Details:
|
Campus Access Switch
|
Key Features:
|
PoE Alternatives
|
Condition:
|
CE6800 Series
|
Warranty:
|
1 Year
|
Packing:
|
Original New
|
Lead Time:
|
1-3 Working Day
|
Ship:
|
DHL FEDEX UPS
|
Payment Term:
|
TT In Advance
|
Original:
|
USA
|
|
Part Number:
|
S5735 L24T4X A1
|
|
Brief Description:
|
Managed Switch
|
|
Details:
|
Campus Access Switch
|
|
Key Features:
|
PoE Alternatives
|
|
Condition:
|
CE6800 Series
|
|
Warranty:
|
1 Year
|
|
Packing:
|
Original New
|
|
Lead Time:
|
1-3 Working Day
|
|
Ship:
|
DHL FEDEX UPS
|
|
Payment Term:
|
TT In Advance
|
|
Original:
|
USA
|

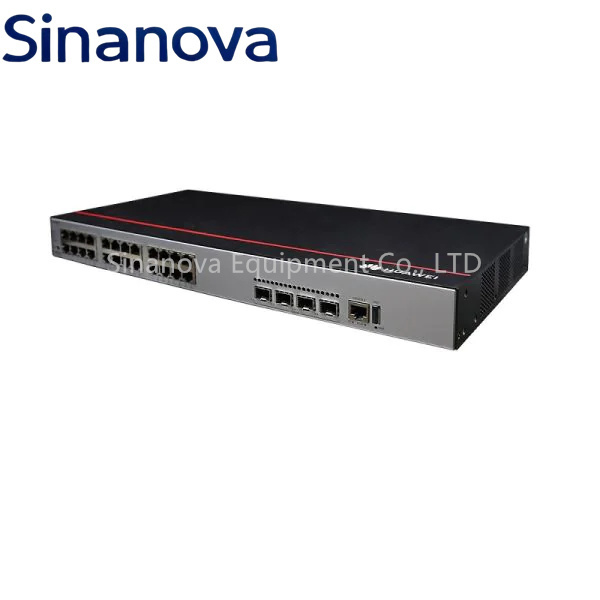

Enterprise-Class S5735 L24T4X A1 Switch Specifications and Comparison
Product Overview
The Huawei S5735-L24T4X-A1 is a next-generation enterprise-class Layer 3 switch designed for high-performance access and aggregation scenarios. It features 24 Gigabit Ethernet ports and 4 10G SFP+ uplinks, offering exceptional forwarding performance, strong security, and high reliability, making it ideal for enterprise campus networks and branch access.
Product Details
This model delivers efficient switching capacity and supports multiple Layer 2 and Layer 3 protocols including static routing, RIP, OSPF, and more. It ensures high network uptime with support for various protection mechanisms and redundant power supply options. The switch is also energy-efficient, supports IPv6, and includes advanced security features like 802.1X authentication, MAC filtering, and ACLs. Centralized management is supported via SNMP, CLI, and web GUI.
Product Features
24 10/100/1000 Mbps RJ45 ports and 4 10G SFP+ uplink ports
Layer 2/3 functionality with advanced routing capabilities
Strong security with user authentication, port isolation, and ACLs
Enhanced QoS for differentiated traffic handling
Supports dual power input and intelligent fan speed control
IPv6 support and rich multicast features
Energy-saving with intelligent Ethernet technology
Product Specifications
| Parameter | Specification |
|---|---|
| Model | S5735-L24T4X-A1 |
| Port Configuration | 24 x GE RJ45, 4 x 10GE SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 250 Mpps |
| Layer Support | Layer 2 and Layer 3 |
| Routing Protocols | Static, RIP, OSPF, BGP |
| Power Supply | Dual redundant supported |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 442 mm x 220 mm x 43.6 mm |
| Management | CLI, SNMP, Web GUI |
Similar Models Comparison
| Model | Ports | Switching Capacity | Forwarding Rate | Notes |
|---|---|---|---|---|
| S5735-L24T4S-A1 | 24 x GE, 4 x 10GE SFP+ | 336 Gbps | 250 Mpps | Similar config, different uplink slot design |
| S5735-L24P4X-A1 | 24 x PoE GE, 4 x 10GE SFP+ | 336 Gbps | 250 Mpps | PoE support for powered devices |
| S5735-L24P4S-A1 | 24 x PoE GE, 4 x 10GE SFP+ | 336 Gbps | 250 Mpps | PoE variant with S uplinks |
Latest Models Comparison
| Model | Ports | Switching Capacity | Forwarding Rate | Enhanced Features |
|---|---|---|---|---|
| S5735-L28T4X-A1 | 28 x GE, 4 x 10GE SFP+ | 400 Gbps | 300 Mpps | Higher density and performance |
| S5735-L24P4X-A2 | 24 x PoE GE, 4 x 10GE SFP+ | 336 Gbps | 250 Mpps | New version with enhanced PoE featu |
Sinanova specializes in supplying ICT networking equipment from leading brands such as Cisco, Huawei, and Juniper. Our product range includes switches, routers, firewalls, wireless access points and controllers, IP phones, video conferencing solutions, and more. We are committed to delivering original and reliable hardware along with professional ICT solutions—all at competitive prices. Our high-quality service ensures a smooth and hassle-free purchasing experience for our clients.
